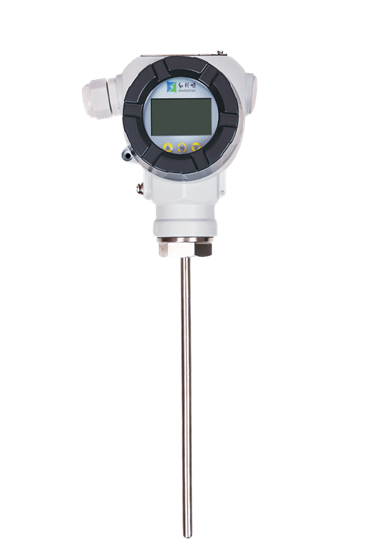

HollySys AW2000 Temperature Transmitter
Multi-input RTD, TC, and mV temperature transmitter with HART 7 and sensor diagnostics.
Product code: AW2000
Brand: Hollysys
Product Overview
The HollySys AW2000 converts RTD, thermocouple, or mV inputs into a standard 4–20 mA signal for control systems. The HART 7 version supports remote configuration and diagnostics. Cold-junction compensation, open/short sensor detection, and input/output isolation improve temperature-loop reliability in industrial environments.
Technical Specifications
- Supply
- 12–40 VDC; 17–40 VDC for HART communication
- RTD inputs
- PT10, PT100, PT200, PT500, PT1000, CU50, CU100
- Thermocouple inputs
- R, S, B, J, T, E, K, N, C, A
- Input signal types
- RTD / TC / mV
- Accuracy
- ≤ 0.1%
- Output
- 4–20 mA; 4–20 mA + HART
- HART version
- HART 7
- Input/output isolation
- 500 V
- Module temperature capability
- -40 to +85°C
Key Features
- Integrated cold-junction compensation supports stable thermocouple measurement.
- Diagnostics cover sensor open circuit, short circuit, and high/low process-variable conditions.
- A single platform supports a broad selection of RTD, TC, and mV inputs.
- Installation requires the correct sensor type, wiring method, range, and supply; HART communication requires 17–40 VDC.
Engineering Support & Quotation
Contact VITECH to confirm the measurement range, process connection, materials, protection version, and control-system integration required for your application.
