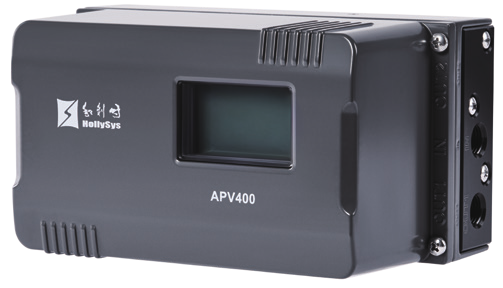

HollySys APV400 Intelligent Valve Positioner
HART 7 intelligent positioner for linear and rotary pneumatic actuators with auto-tuning and valve diagnostics.
Product code: APV400
Brand: Hollysys
Product Overview
The HollySys APV400 controls valve position from a 4–20 mA signal and communicates through HART 7. It supports linear and rotary pneumatic actuators, intelligent auto-tuning, and adaptive predictive control to improve valve-loop response. Configuration and diagnostic functions assist commissioning, predictive maintenance, and valve-assembly condition assessment.
Technical Specifications
- Input
- 4–20 mA
- Communication
- HART 7
- Accuracy
- 0.5%
- Enclosure rating
- IP66
- Supported actuators
- Linear and rotary pneumatic
- Configurable parameters
- Split range, characteristic curve, stroke range/direction, tight shut-off, dead zone, and alarm/fault outputs
- Diagnostics
- Leak detection, partial stroke test, travel/limit, pressure, temperature, and stroke accumulation
- Protection versions
- Intrinsically safe or flameproof
Key Features
- Intelligent auto-tuning accelerates setup of valve travel and assembly characteristics.
- Adaptive predictive control supports stable positioning of linear and rotary actuators.
- Leak diagnostics, partial stroke testing, and limit monitoring support condition-based maintenance.
- Installation requires verification of actuator type, travel, supply-air pressure, mechanical linkage, and hazardous-area classification.
Engineering Support & Quotation
Contact VITECH to confirm the measurement range, process connection, materials, protection version, and control-system integration required for your application.
