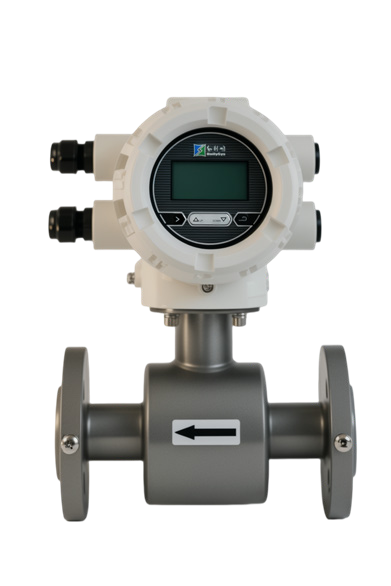

HollySys AF2500 Electromagnetic Flowmeter
DN10–DN1200 electromagnetic flowmeter for conductive liquids, available in integral or remote construction.
Product code: AF2500
Brand: Hollysys
Product Overview
The HollySys AF2500 measures volumetric flow of conductive liquids without placing a direct obstruction in the flow path. Integral and remote constructions are available with multiple electrode and liner options for water, wastewater, chemicals, slurry, and pulp. Configuration should be selected according to pipe size, pressure, conductivity, chemical compatibility, and installation conditions.
Technical Specifications
- Nominal diameter
- DN10–DN1200
- Accuracy
- ≤ 0.5%
- Pressure rating
- 1.0–4.0 MPa
- Structure
- Integral or remote / split
- Connection
- Flange; wafer where applicable
- Electrode materials
- 316L, HB, HC, Titanium, Tantalum, Tungsten Carbide, Platinum-Iridium
- Lining options
- Chloroprene rubber, Polyurethane, PCTFE, PTFE, PFA
- Measured media
- Conductive liquids
- Protection versions
- Hazardous-area variants available where specified
Key Features
- No moving parts in the measuring tube, supporting a broad range of industrial liquid applications.
- A broad size range covers water, wastewater, and process piping.
- Multiple electrode and liner options support chemicals, slurries, suspensions, and pulp.
- Measurement requires suitable liquid conductivity; maintain a full pipe, correct grounding, and installation-specific straight runs.
Engineering Support & Quotation
Contact VITECH to confirm the measurement range, process connection, materials, protection version, and control-system integration required for your application.
